AerCrypt Project

The AerCrypt is a modifiable handheld crypto wallet that can be used to interact with Web3 based dapps including NFTs, blockchain games, and many more.

Conceived as a hardware wallet with blockchain gaming capabilities the AerCrypt is modifiable so it can be used for a myriad of other things including authentication, secure messaging, web3 games, and so much more!
Visit our Dev Portal for tons of examples made by other users just like you!

Featuring a 2.4" TFT-LCD display screen, two joysticks, a full QWERTY keyboard, stereo speakers, USB-C with fast charging, BlueToothe LE, Wifi(6), and a 5000 mAh LiPo Battery the AerCrypt is built to keep up with your busy day!

Project Stretch Goals: The first round Stretch Goal is to add Mesh networking via an onboard radio controller which can be used to enable networking functionality without a direct Internet connection.
Further Stretch goals TBA.

Pricing and Ordering Shop

All AerCrypt Handheld Devices will ship with comprehensive documentation on how to use and modify the device.

Each device will also come with the full source code, including access to all future official updates.

Registering your device also registers you on the Dev Portal where you can find extensions and plug ins created by other users just like you!

Project Funding Campaign

This is a 30 Day campaign for development funding of the AerCrypt handheld device
Campaign Complete. Funding Goal Reached!

Tier 1: $15 in MRX.

10% off coupon for the final product
Commemorative AerCrypt Founder NFT on the MetrixCoin blockchain

Tier 2: $45 in MRX.

25% off coupon for the final product
Commemorative AerCrypt Founder NFT on the MetrixCoin blockchain

Tier 3: $100 in MRX.

50% off coupon for the final product
Commemorative AerCrypt Founder NFT on the MetrixCoin blockchain
Access to Exclusive Development Content
Custom Discord Server Role

Tier 4: $155 in MRX.

75% off coupon for the final product
Commemorative AerCrypt Founder NFT on the MetrixCoin blockchain
Access to Exclusive Development Content
Custom Discord Server Role

Founder Tier: $200 in MRX.

First 60 Founder Tier Contributors will receive a First Edition AerCrypt Handheld Device
When round one sells out you can instead purchase a coupon to receive an AerCrypt from a later round.
Commemorative AerCrypt Founder NFT on the MetrixCoin blockchain
Access to Exclusive Development Content
Custom Discord Server Role
Access to Private Discord Development Chat

Funding Campaign is Complete!

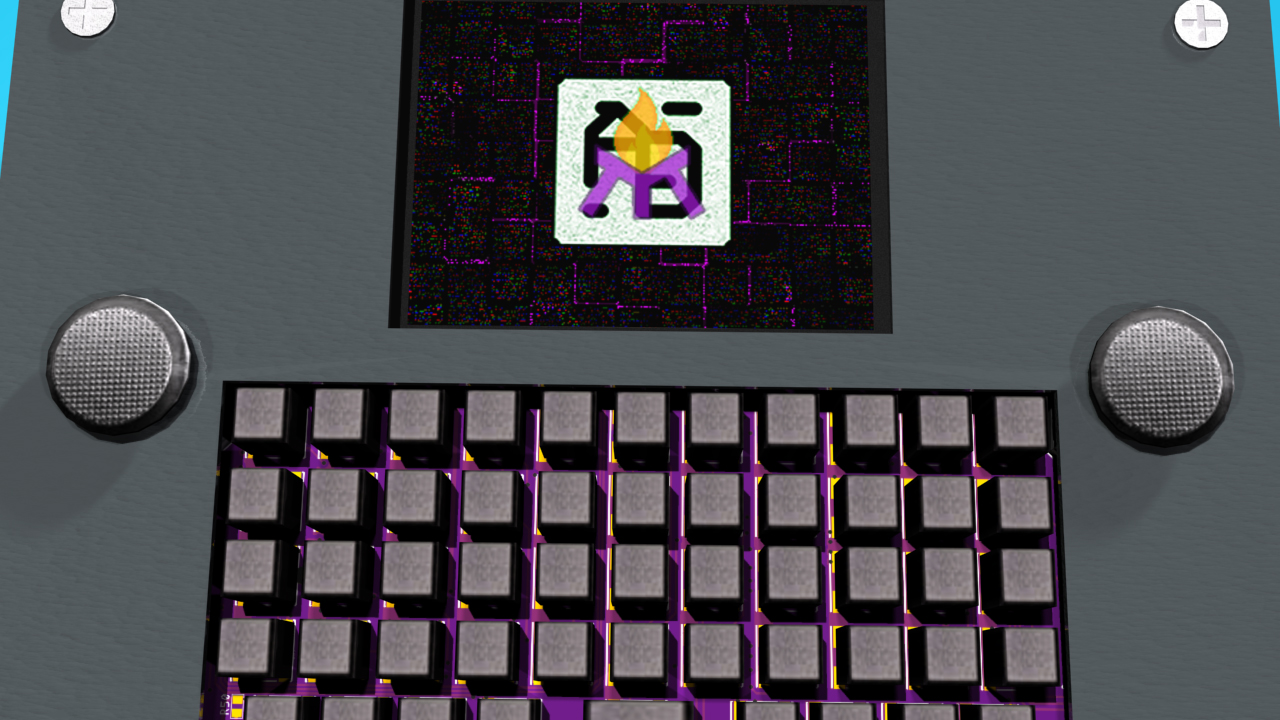

AerCrypt Video Rendering

Loading Project..

AerCrypt Device IO Features

Interface

Full 53 key QWERTY keyboard.
When round one sells out you can instead purchase a coupon to receive an AerCrypt from a later round.
Twin Dual-Axis Joysticks.
61mm (2.4") TFT Screen with 320x240 pixel resolution.
Stereo Speakers & headphone output.
Microphone with on/off toggle.

Connectivity

Wifi Connection to Local Wifi Access Point.
BlueTooth LE (possible).
USB-C connector.
- Two Way Data interface for control and system updates.
- Fast charging support: 5v 1A, Max: 20v 2A.
- Can provide 5v 1A of power to a connected device.
USB-b micro connector.
- One way Data interface for control and updates.
- Charging: 5v 1A.
RF 915Mhz/430mHz Transmitter & Receiver.
- Mesh network capability.
- LoRa Support (optional).
Auxiliary GPIO ports.

AerCrypt Dimensions

Internal PCB Size

Width: 124 mm (4.88 in).
Height: 88 mm (3.46 in).

Approximate Case Size

Width: 130 mm (~5 in).
Height: 93 mm (~3.6 in).
Depth: 20 mm (~1.2 in).

AerCrypt Device Specs

AerCrypt Specifications:

2 Megapixel Camera.
Smart Battery Charger.
- Fast Charging support up to 20v/2A.
5000 mAh LiPo battery (Included).
Onboard Flash Storage (Internal).
- 128 Megabyte flash chip.
- Options for up to 512 MB of space.

Micro SD Card Socket for memory expansion.
Cryptographic acceleration processors and storage.
6 axis position and motion sensor.
Onboard temperature sensor.
Dedicated internal DAC and Stereo Speakers.

AerCrypt Cores

Device Cores:

CPU

ESP32

Central Processing Unit.
32bit 2x Core @ 240mhz with 4MB RAM.
Integrated Wifi & Bluetooth.
Main Operating System Controller.

GPU

RP2040

Graphical Processing Unit.
32bit 2x Core @ 133mhz.
Video Rendering & Display Buffer.

IPU

RP2040

Module

Imaging Processing Unit.
32bit 2x Core @ 133mhz.
Camera Cache & Processor.

AUX

RP2040/ESP32/Custom

M.2 Socket

Auxiliary Processor.
Expansion Options.

Project Goals

AerCrypt Goals:

Secure Handheld Device that can store Cryptographic keysets.
Hardware Wallet for supported cryptocurrencies.
- Ability to support MetrixCoin Natively.
- Ability to support most other BTC/EVM based blockchains.
Web 3.0 NFT support interface.
Gaming integration with PyroPets NFT application.
Basic System Functions.
- Battery charger and power management subsystem.
- Graphical user interface via TFT display.
- User input via full keyboard interface.
- Audio sub-system and ability to play sound.
- External connectivity and WAN access capable.
- Data storage system to internal and external storage media.

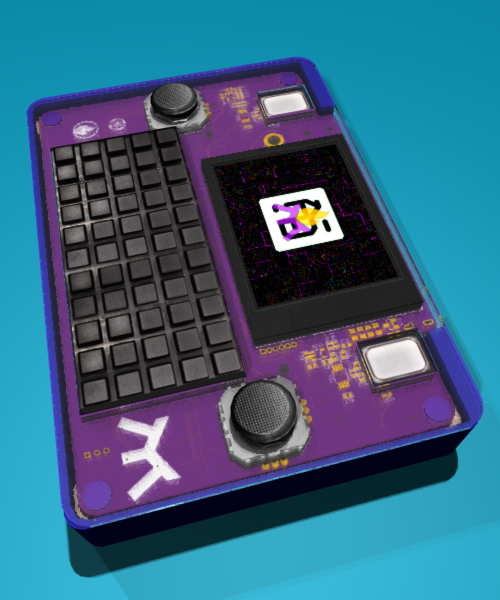

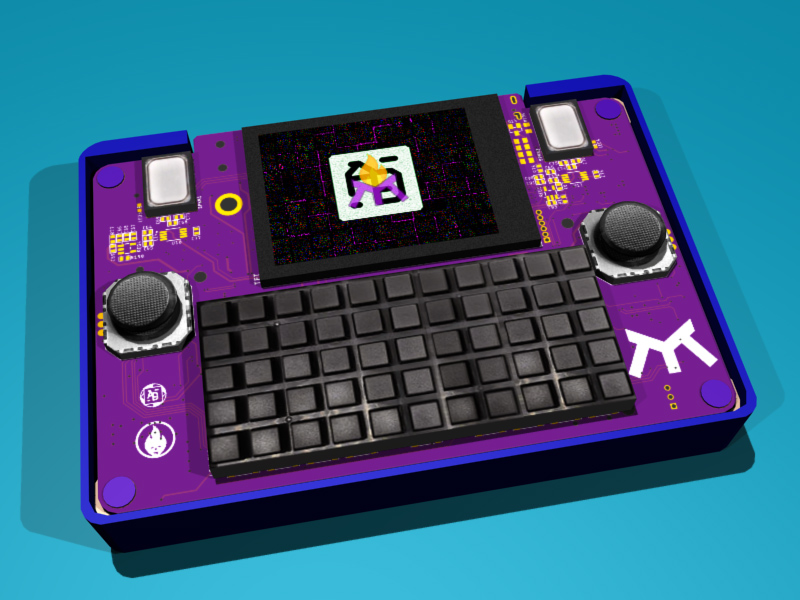

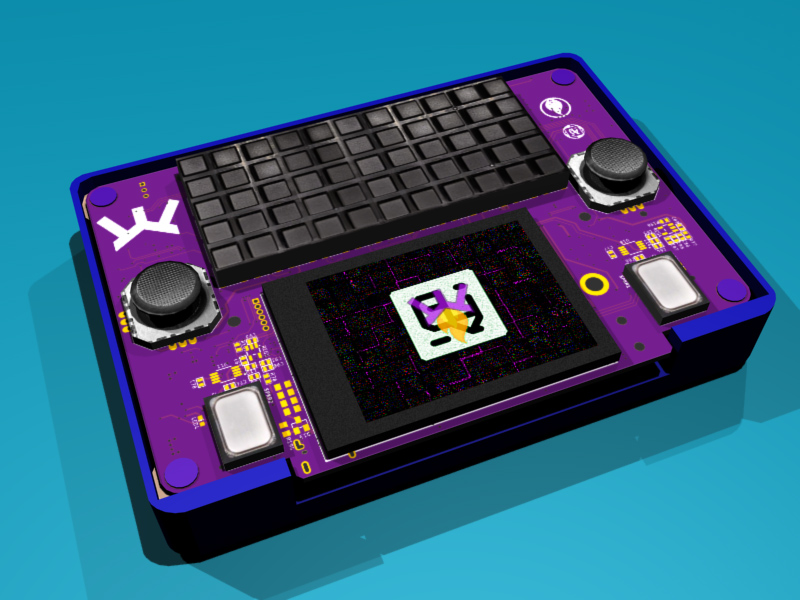

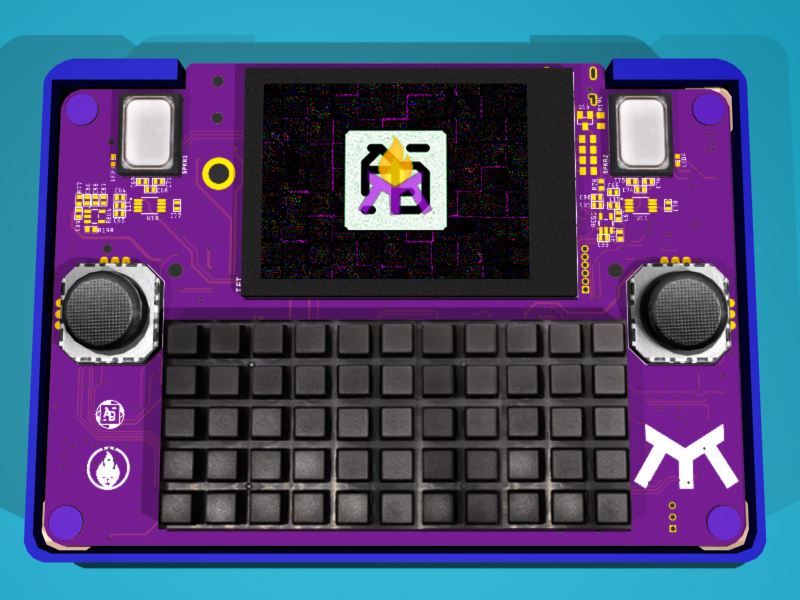

Prototype Rendering with Case
